Description

Passive 12″ Full-Range Loudspeaker

• Vertical and horizontal use thanks to a coaxial design with rotating, BEM-optimised CD horn (patent pending)
• Speaker Twist In/Out
• 4 Handles
• HF driver: 1″
• Power rating: 250 W RMS, 1000 W peak
• Impedance: 8 Ohm
• Frequency range: 55 – 20000 Hz
• Dispersion angle: 90° x 50°
• Peak SPL: 123 dB
• 2 x 36 mm Stand flange mount (0° and 5°)
• Monitor angle: 55°
• 6 x M10 rigging points
• Dimensions (W x H x D) 375 x 635 x 396 mm
• Weight: 19.8 kg
• Colour: Black

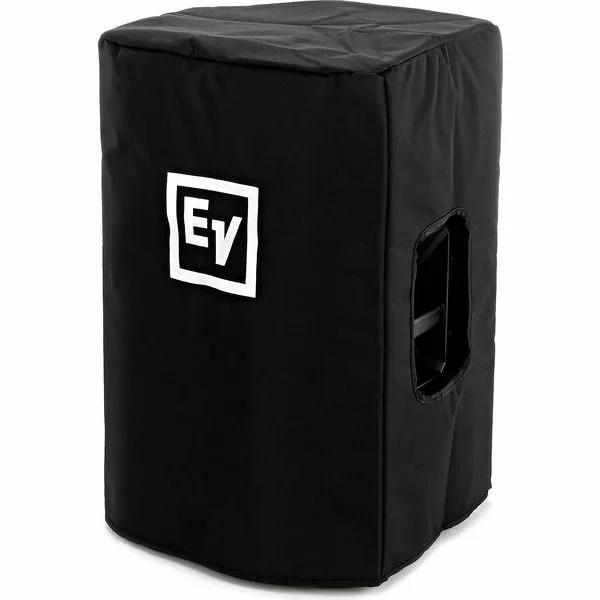

• Suitable cover: Article no. 481069 (not included)

30 30-Day Money-Back Guarantee

3 3-Year Thomann Warranty

• Available since July 2020

• Item number 497290

• Sales Unit 1 piece(s)

• Manufacturers Information Power Handling 1000 W

• Impedance 8 Ohms

• Number of Woofers 1

• Woofers in Inch 12″

• Colour Black

• Width in mm 375 mm

• Depth in mm 635 mm

• Height in mm 396 mm

• Weight in kg 19,8 kg

• Monitor Angle Yes

• IP Class No

• RMS Power 250 W

• Flyable M10

• Impedance in Ohms 8 Ohms

• Maximal SPL 123 dB

• SPL in dB 123 dB

• Number of Midrange Speakers 0

• Number of Mid-Tone Speakers 0

• Mid-Tone Speakers in Inch none

• Number of HT-Speaker 1

• Number of HT-Speakers 1

• HT-Speakers in Inch 1″

• Stand Flange 36 mm

• Number of Ways 2-Way

• Housing Material Plastic

• Construction Standard Cabinet

• Frequency Range (-3dB) from 55 Hz

• Input Speaker-Twist

• Frequency Range (-3dB) to 20000 Hz

• Output Speaker-Twist

• Horizontal Beam Angle 90 °

• Vertical Beam Angle 50 °
